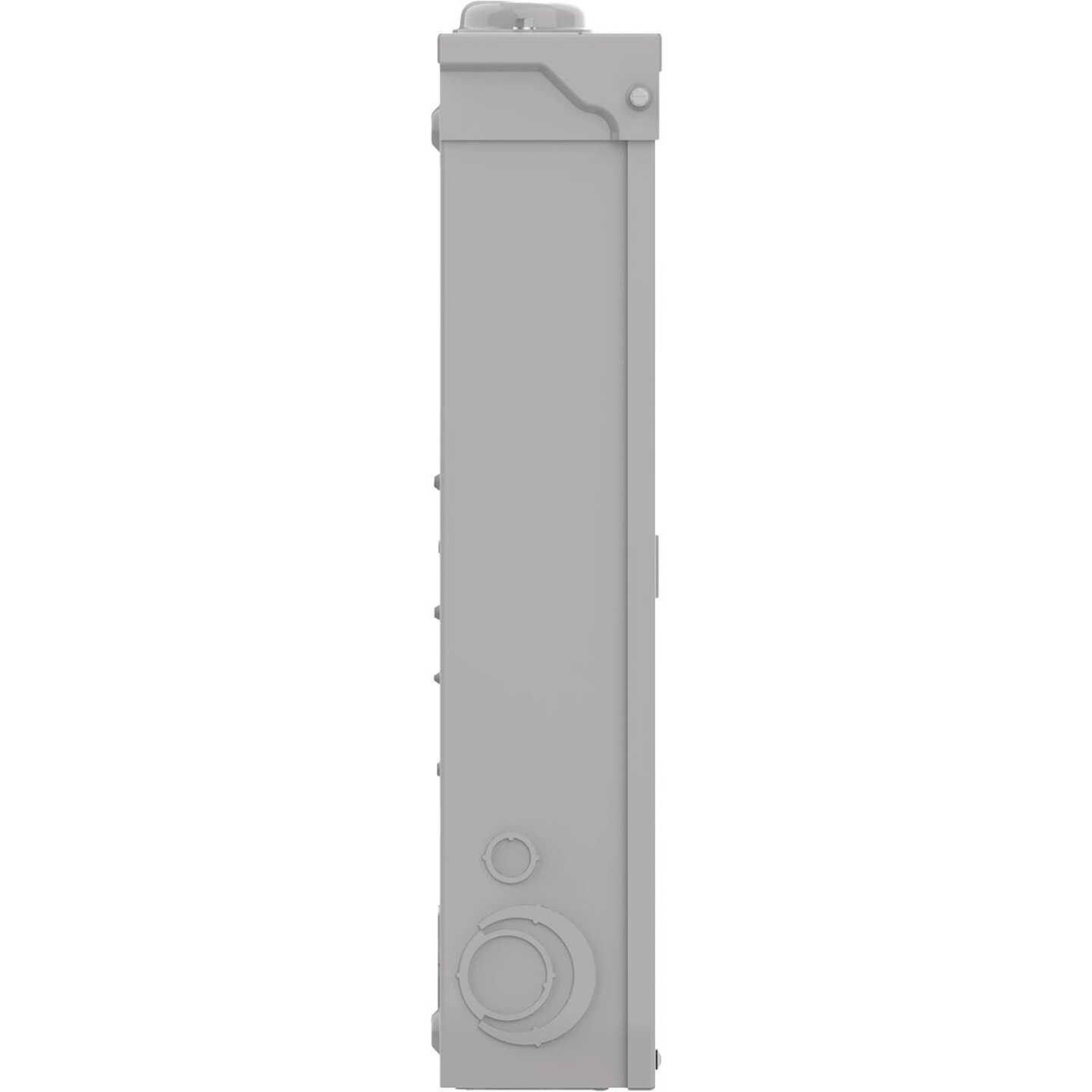

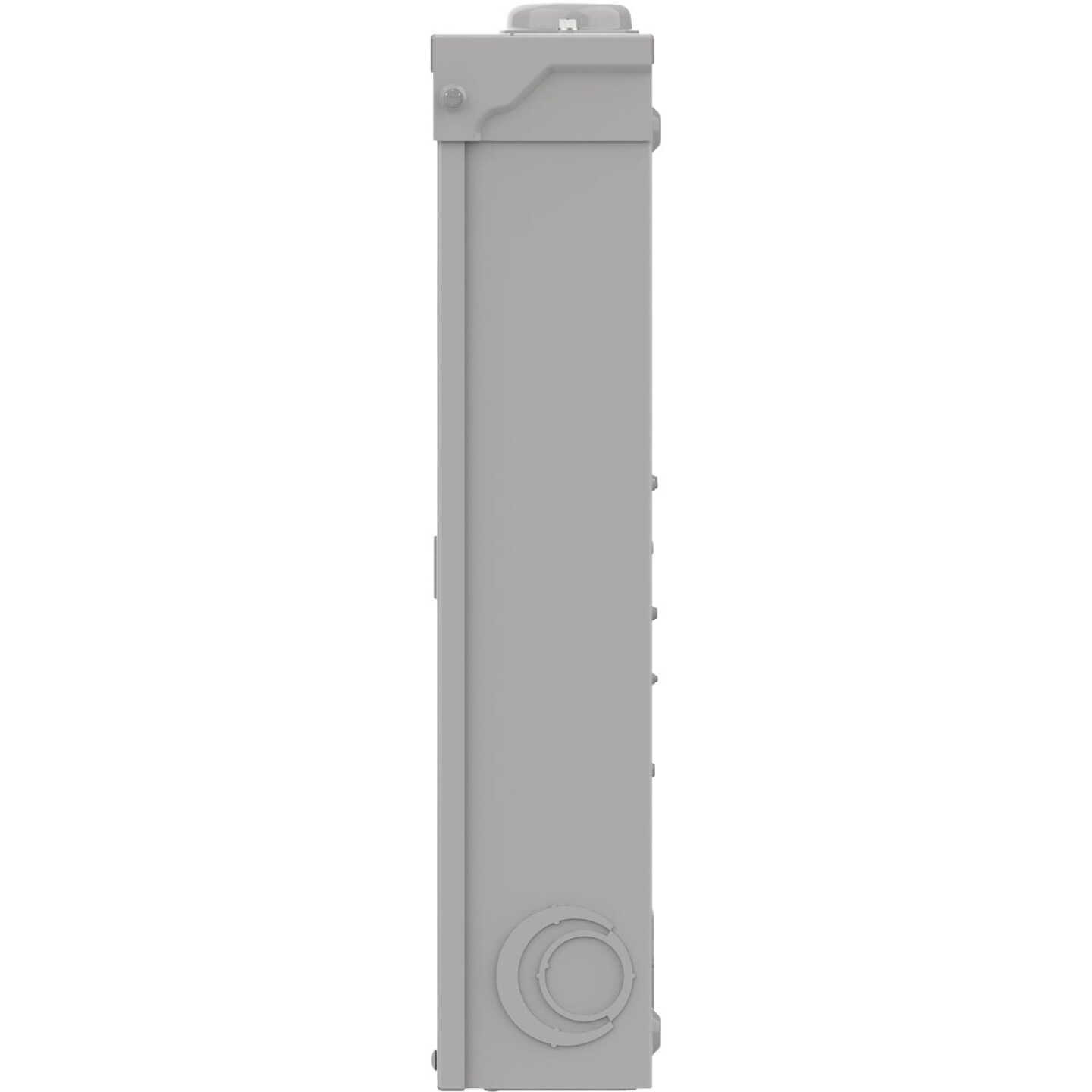

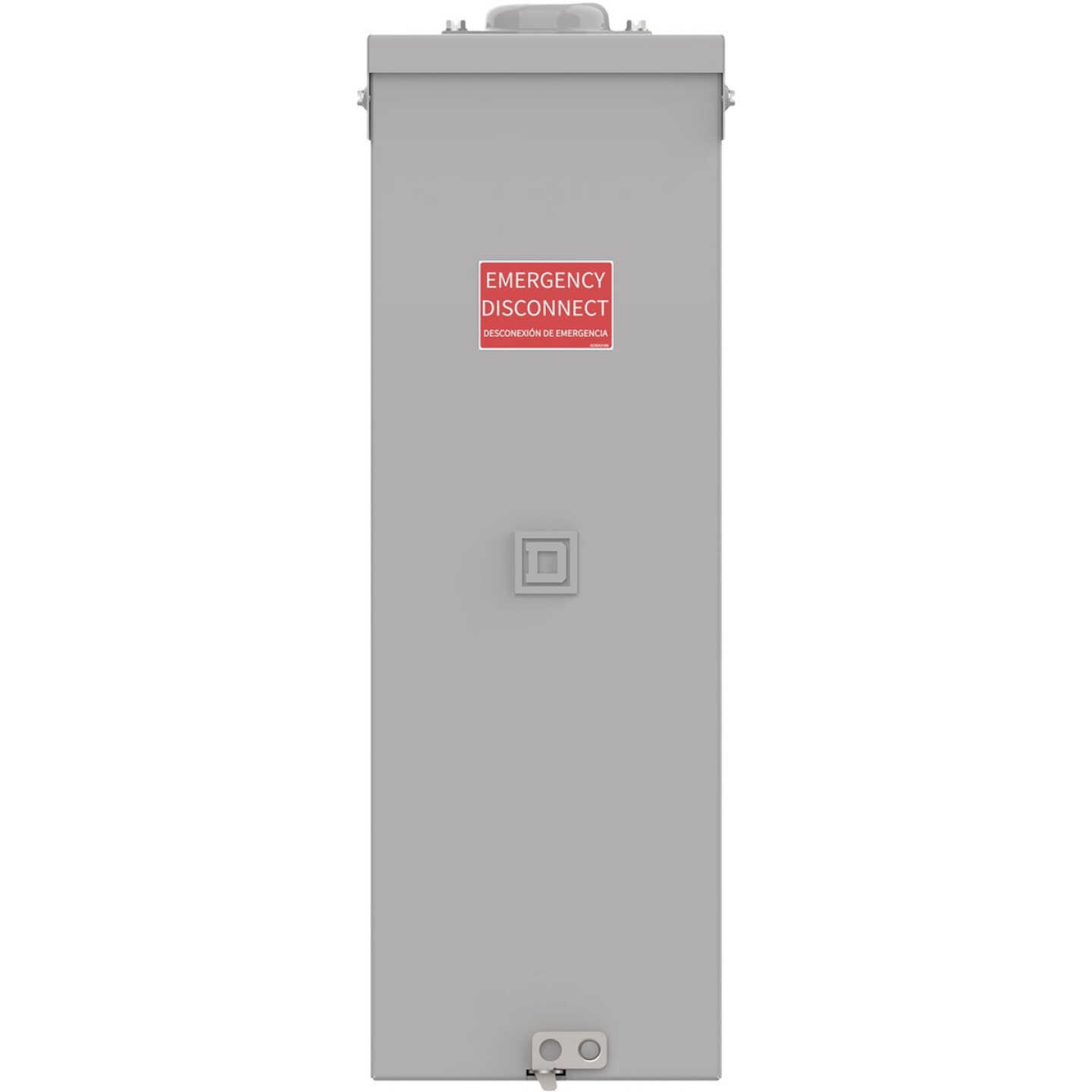

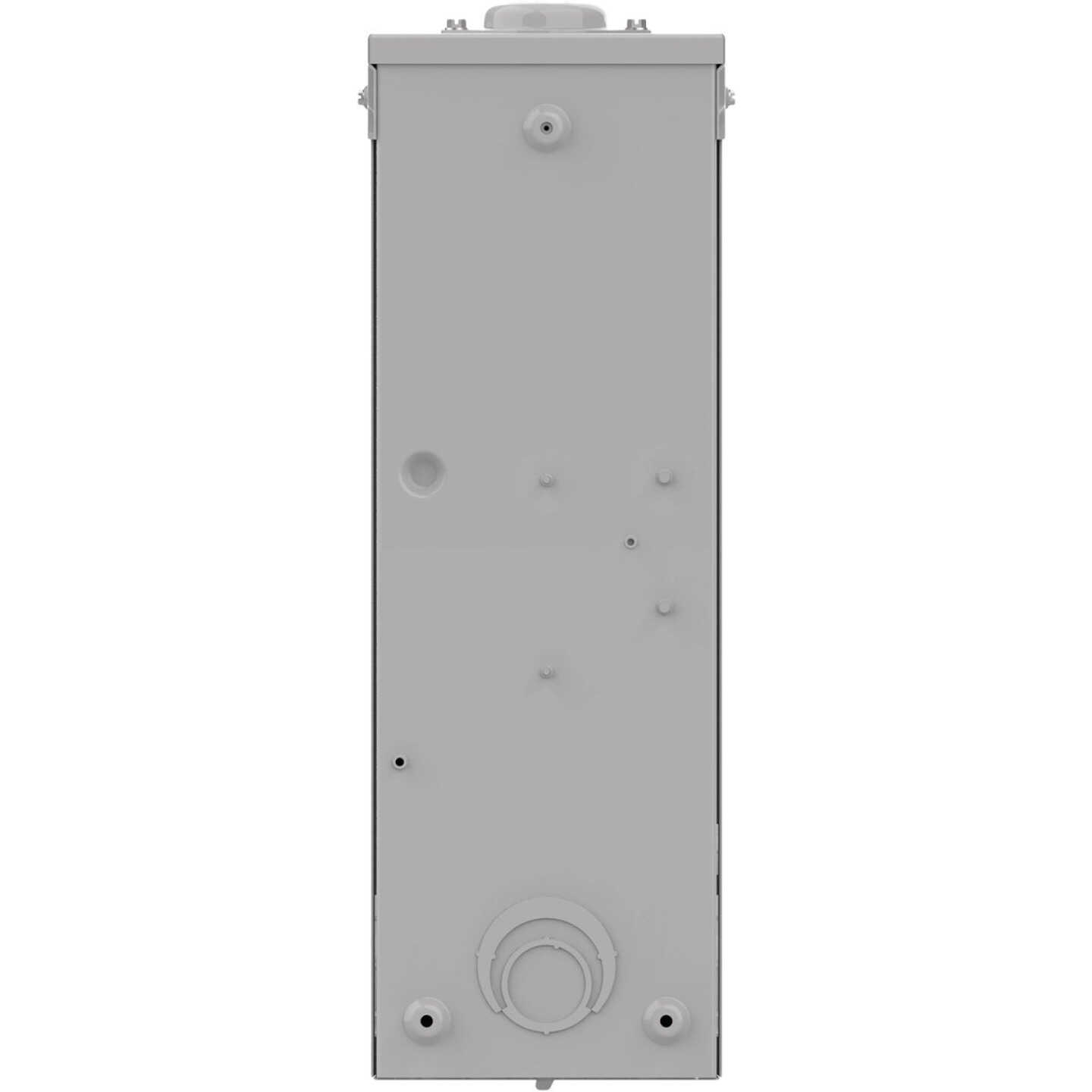

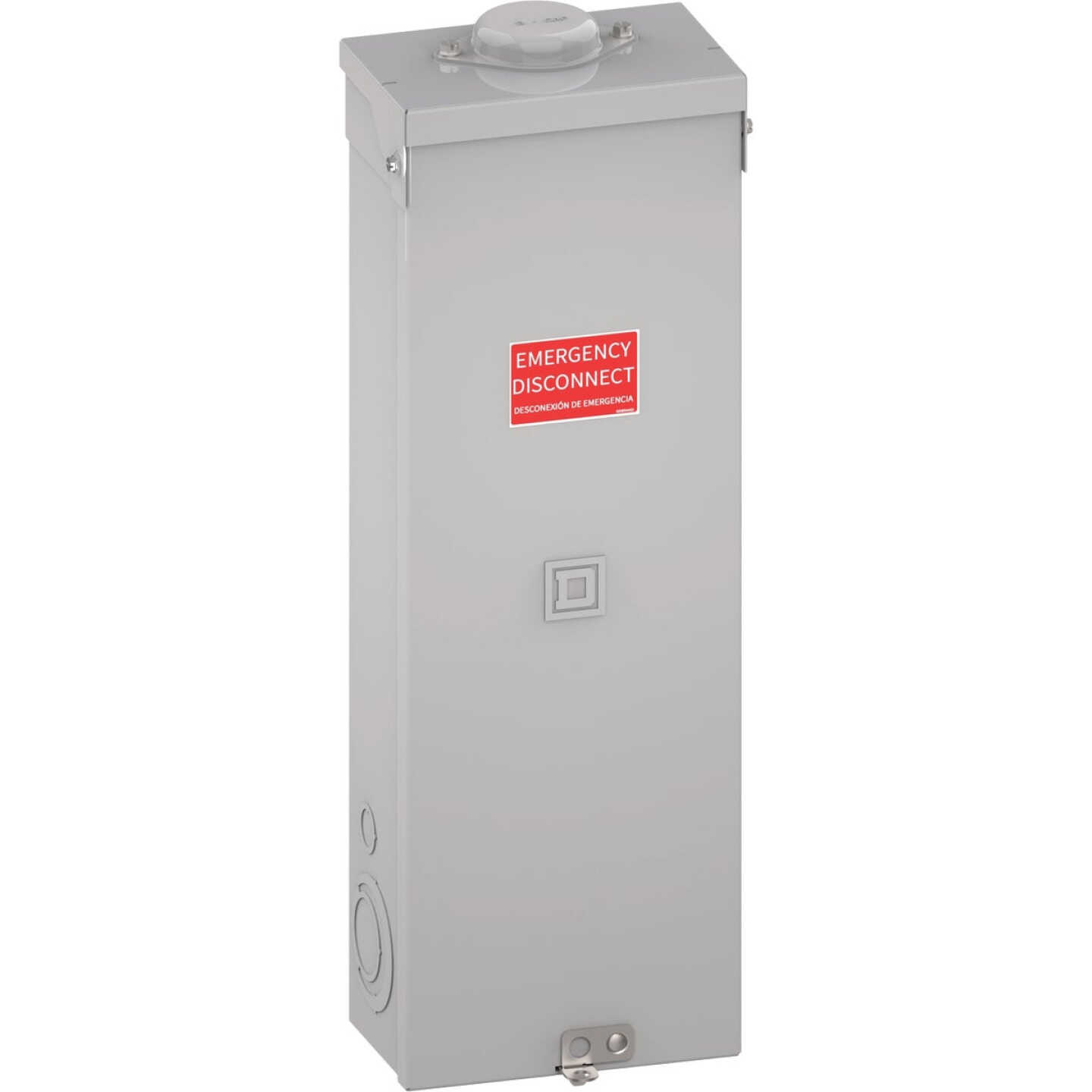

ElectricalCircuit Breakers, Fuses & Load CentersCircuit BreakersMain BreakerSquare D QO 200A Double-Pole Standard Trip Outdoor Enclosed Raintight Main Breaker Disconnect
ElectricalCircuit Breakers, Fuses & Load CentersCircuit BreakersMain BreakerSquare D QO 200A Double-Pole Standard Trip Outdoor Enclosed Raintight Main Breaker DisconnectSquare D QO 200A Double-Pole Standard Trip Outdoor Enclosed Raintight Main Breaker Disconnect
$199.99
In-store price may vary from online price. Not all products available at all stores.SALE
$199.99
In-store price may vary from online price. Not all products available at all stores.Free Ship-to-Store
- JETSONS6032 Huguenard Rd
FORT WAYNE, IN 46818 US
Estimated pickup day: 12/9/2025
Ship to Address
- Ground Shipping Available
- Expedited Shipping Available
Details
Specifications
Reviews
- Residential enclosed circuit breaker.
- Designed to be code compliant, easy to install, customizable, and highly reliable.
- This rainproof circuit breaker is suitable for use only as service equipment because it features a service entrance barrier, factory installed neutral bar bonded to the enclosure, factory applied emergency disconnect, service entrance labels, and factory installed QDL22200 molded case circuit breaker (150 to 200A 25kAIR).

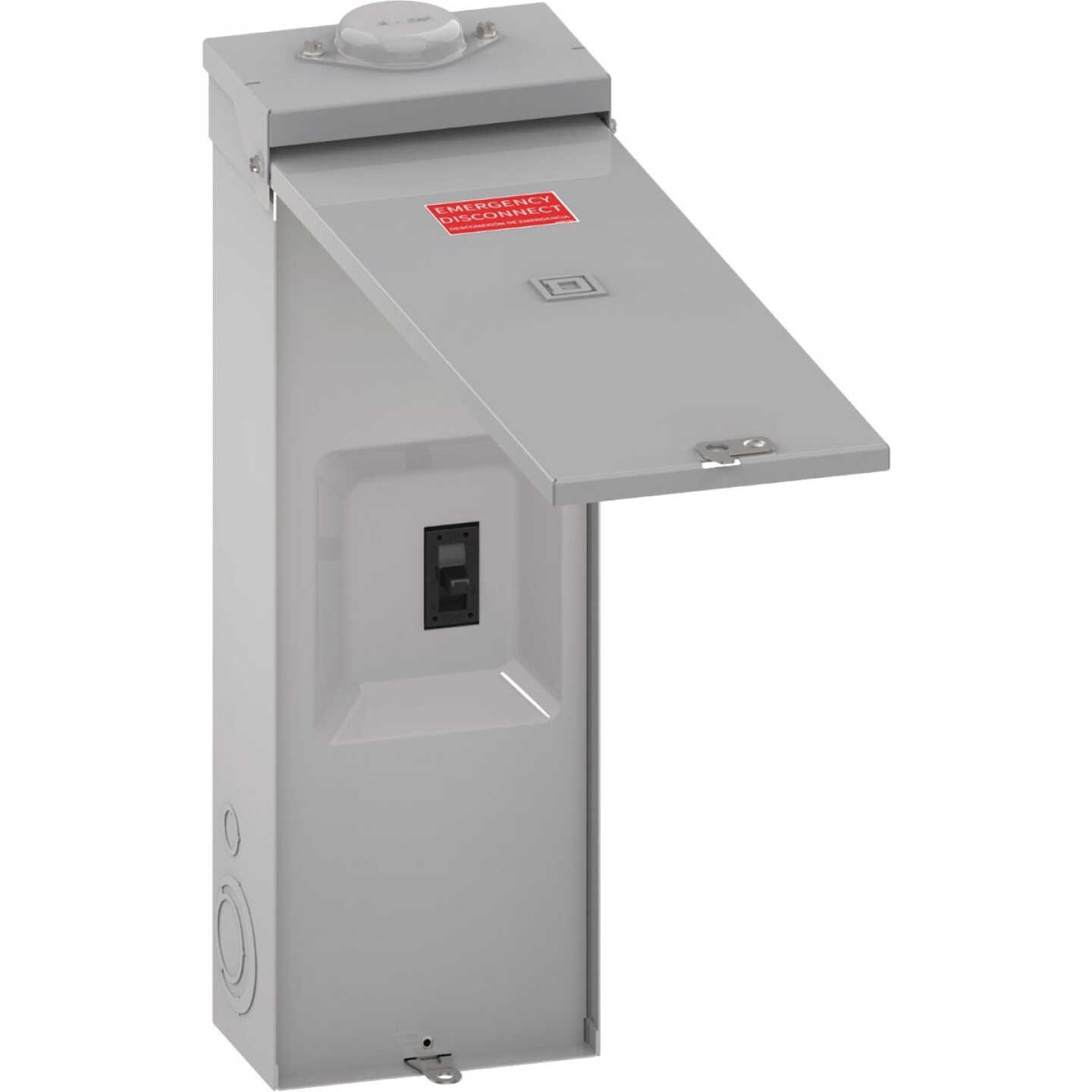

- Separate raintight access door to circuit breaker.
- Convenient hook and hang mounting.
- Provisions for padlocking and sealing the enclosure separately from the breaker are standard.
- Rated Type-3R for outdoor use.
- UL (Underwriter's Laboratories) listed.
- A compact and flexible 2020 NEC compliant residential service entrance device.
Additional Details
- For use as a separate main breaker or where a main disconnect is required by code to be outside the structure

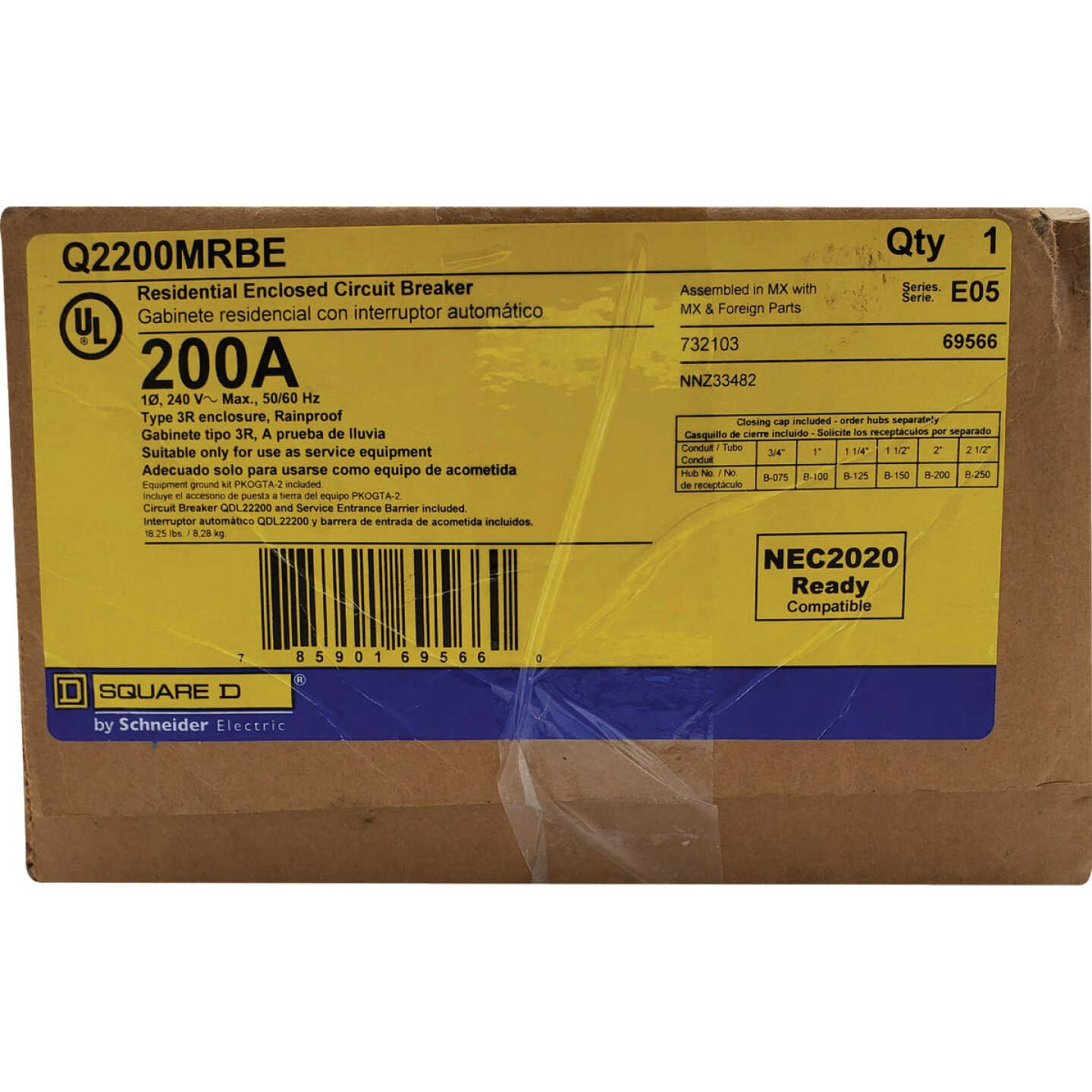

- Includes factory installed (1) QDL22200, (1) service entrance barrier, (1) emergency disconnect label & (1) service disconnect label
- Separate raintight access door to circuit breaker
- Convenient hook and hang mounting
- Provisions for padlocking and sealing the enclosure separately from the breaker are standard
- Rated Type-3R for outdoor use
- UL Listed
| Brand | Square D |
| Amperage | 200 |
| Number of Poles | 2 |
| Interruption Type | Standard Trip |
| Voltage | 120/240 |
| Frame Size | 2-Space |
| Width | 7.64 |
| Height | 23.39 |
| Depth | 4.76 |
| Mount Type | Plug-On |
| Wire Size | 14AWG to 12AWG 1/0 AWG Copper |
| Certification | UL Listed |
| UPC | 00785901695660 |
| Package Quantity | 1 |
| Unit of Measurement | Each |
| Country of Origin | Mexico |
