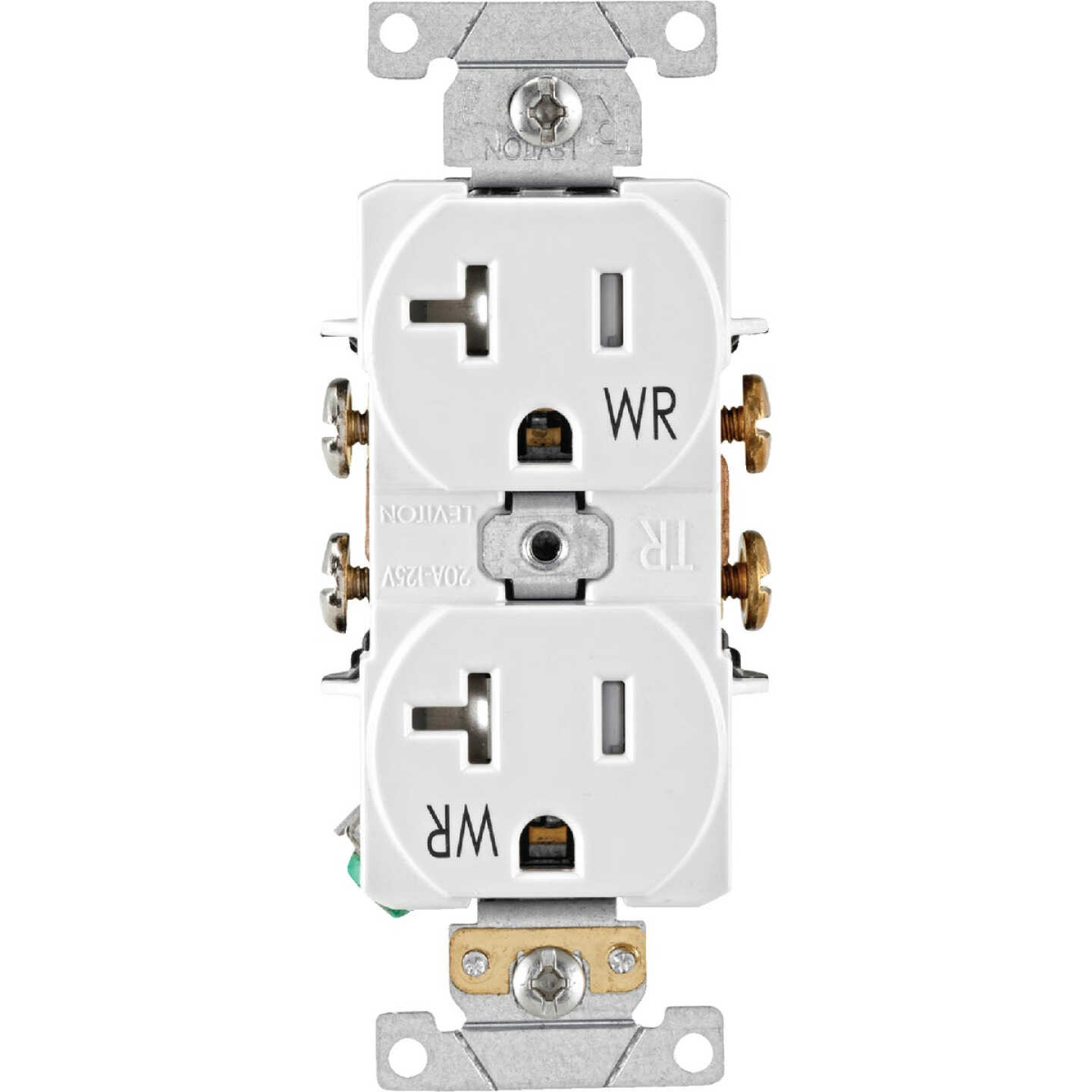

Leviton 20A White Tamper & Weather Resistant Commercial Grade 5-20R Duplex Outlet

Item: #525453
Model : #R77-TWR20-00W
UPC #00078477381854
$8.79
In-store price may vary from online price. Not all products available at all stores.
$8.79
In-store price may vary from online price. Not all products available at all stores.
Free Ship-to-Store
  • JETSONS6032 Huguenard Rd
    FORT WAYNE, IN 46818 US

    Estimated pickup day: 12/9/2025
Ship to Address
  • Ground Shipping Available
  • Expedited Shipping Available
Other Options
Details
  • Commercial grade, tamper and weather-resistant nylon duplex receptacle.
  • Shutter mechanism inside the receptacle blocks access to the contacts unless a 2-prong plug is inserted, helping to ensure objects such as hairpins and keys will be locked out.
  • Shallow design for maximum wiring room in box.
  • Side-wired, large-head terminal screws and back-wiring clamps accept up to No. 10 copper wire.
  • Triple wire power contacts for maximum conductivity and plug retention.
  • Captive mounting screws for fast installation.
  • Convenient washer-type break-off plaster ears for best flush alignment.
  • Break-off tabs for easy 2-circuit conversion.
  • Heavy-gauge rust-resistant steel mounting strap.
  • Covers must be used with WR GFCI (ground fault circuit interrupter) receptacles in damp or wet locations per Section 406.8 of the NEC Code.
  • Limited 2-year warranty.
  • White.

Additional Details

  • Commercial grade, tamper and weather-resistant design
  • Shutter mechanism inside the receptacle blocks access to the contacts unless a 2-prong plug is inserted, helping to ensure small objects will be locked out
  • Shallow design for maximum wiring room in box
  • Triple wire power contacts for maximum conductivity and plug retention
  • Captive mounting screws for fast installation
  • Convenient washer-type break-off plaster ears for best flush alignment
  • Heavy-gauge rust-resistant steel mounting strap
  • Limited 2-year warranty
  • UL Listed
Specifications
ColorWhite
Amperage20
TypeCommercial
NEMA Configuration5-20R
Voltage125
Number of Poles2
Number Of Wires3
UL ListedUL Listed
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
BrandLeviton
UPC00078477381854
Package Quantity1
Unit of MeasurementEach
Country of OriginMexico
