Simpson Strong-Tie ECCLL L-Shape End Column Cap for 6x Beam, 6x Post, Skewed Left

Item: #104397
Model : #ECCLL666
UPC #00044315275302
By: Simpson Strong-Tie
$294.99
In-store price may vary from online price. Not all products available at all stores.
SALE
Simpson Strong-Tie ECCLL L-Shape End Column Cap for 6x Beam, 6x Post, Skewed Left Image 1
zoom Created with Sketch.
View Full Size
Simpson Strong-Tie ECCLL L-Shape End Column Cap for 6x Beam, 6x Post, Skewed Left Image 2
zoom Created with Sketch.
View Full Size
Simpson Strong-Tie ECCLL L-Shape End Column Cap for 6x Beam, 6x Post, Skewed Left Image 3
zoom Created with Sketch.
View Full Size
Caption goes here.
Simpson Strong-Tie ECCLL L-Shape End Column Cap for 6x Beam, 6x Post, Skewed Left Image 1
Simpson Strong-Tie ECCLL L-Shape End Column Cap for 6x Beam, 6x Post, Skewed Left Image 2
Simpson Strong-Tie ECCLL L-Shape End Column Cap for 6x Beam, 6x Post, Skewed Left Image 3
$294.99
In-store price may vary from online price. Not all products available at all stores.
Free Ship-to-Store
  • Not available online - check store for availability
Ship to Address
  • Ground Shipping Available
  • Expedited Shipping Available
Product DetailsReviewsQuestions & Answers
Details
  • Simpson Strong-Tie column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces.

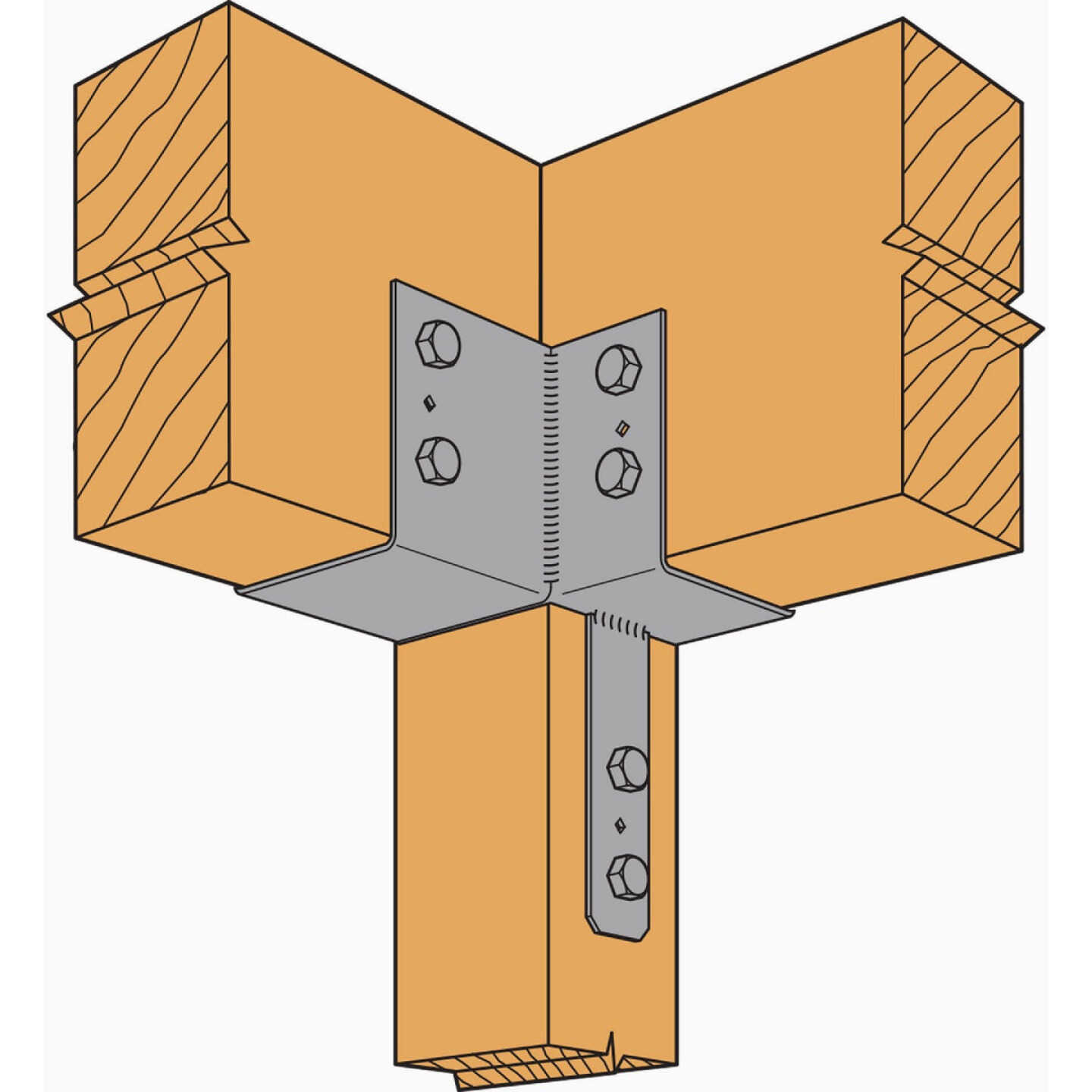

  • The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an L formation on top of a column.
  • When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection.
  • End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.

Additional Details

  • Assembled with certified welds for confidence in strength and loading
  • Bolt spacing that meets NDS code requirements to ensure optimal performance
  • Diamond holes to provide temporary fastening
  • Left direction; order ECCLR for right direction
  • Nominal member sizes: 6x main beam, 6x post, 6x side beam
  • Made from 7-gauge steel
  • Simpson Strong-Tie gray paint finish
  • Install with 5/8-in. diameter bolts (not included)
Specifications
BrandSimpson Strong-Tie
Width6
Height6
Depth4
MaterialGalvanized Steel
FinishGray Paint
Gauge7
Post Size6x
UPC00044315275302
Package Quantity1
Unit of MeasurementEach
Country of OriginUnited States of America
