Simpson Strong-Tie ABU Stainless Steel Adjustable Post Base for 6x6

Item: #135750
Model : #ABU66S
UPC #00707392440901
By: Simpson Strong-Tie
$209.99
In-store price may vary from online price. Not all products available at all stores.
SALE
Simpson Strong-Tie ABU Stainless Steel Adjustable Post Base for 6x6 Image 1
zoom Created with Sketch.
View Full Size
Simpson Strong-Tie ABU Stainless Steel Adjustable Post Base for 6x6 Image 2
zoom Created with Sketch.
View Full Size
Simpson Strong-Tie ABU Stainless Steel Adjustable Post Base for 6x6 Image 3
zoom Created with Sketch.
View Full Size
Caption goes here.

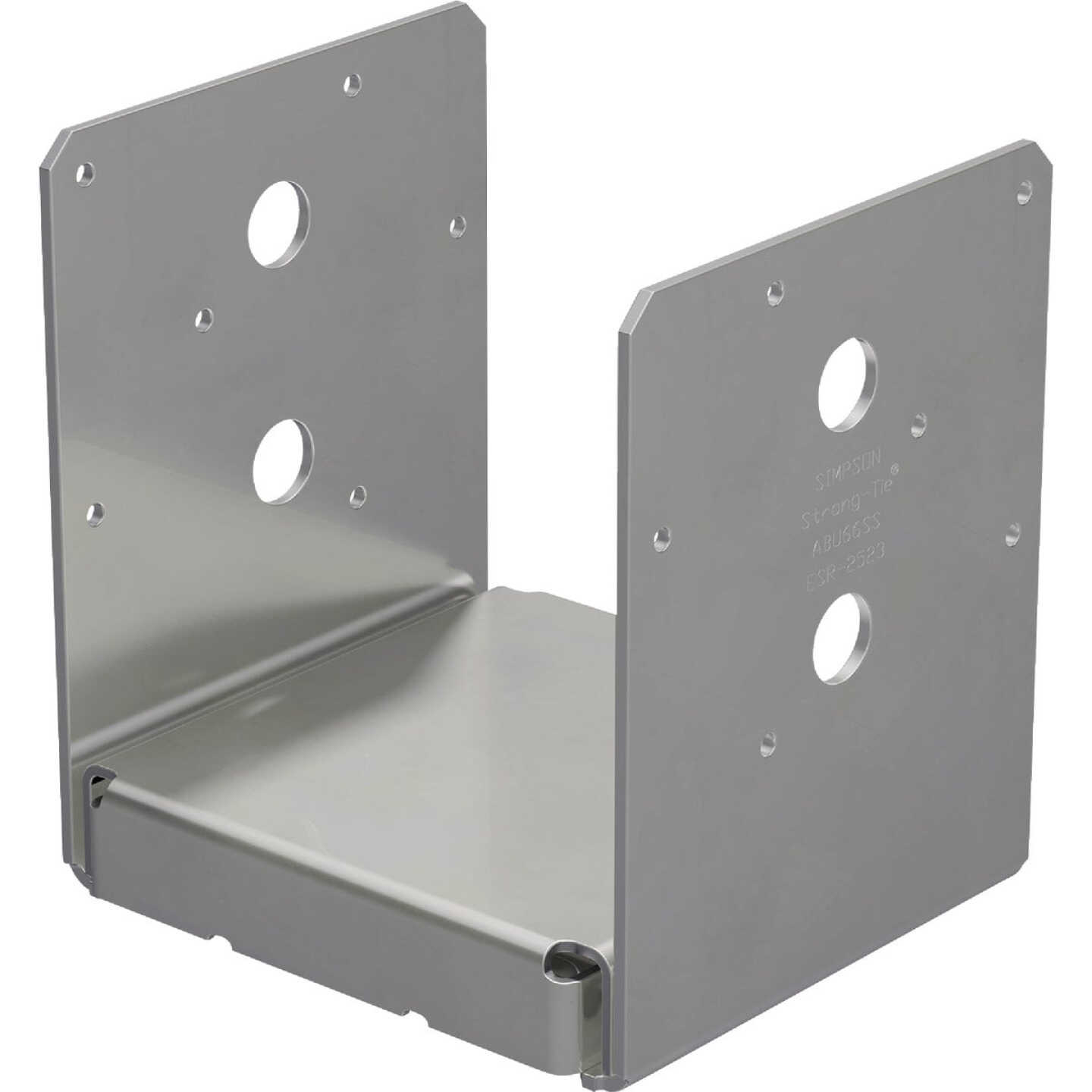

Simpson Strong-Tie ABU Stainless Steel Adjustable Post Base for 6x6 Image 1

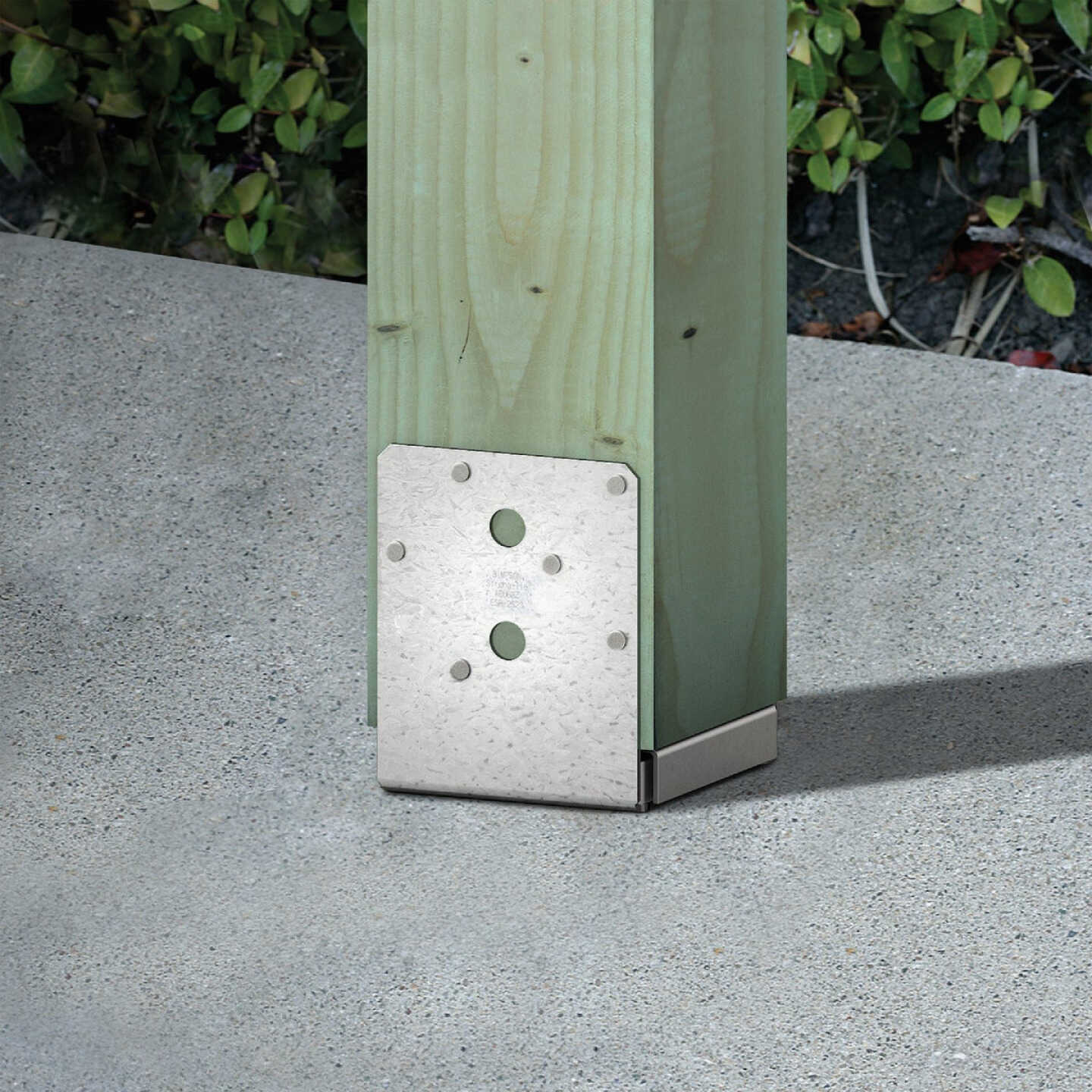

Simpson Strong-Tie ABU Stainless Steel Adjustable Post Base for 6x6 Image 2

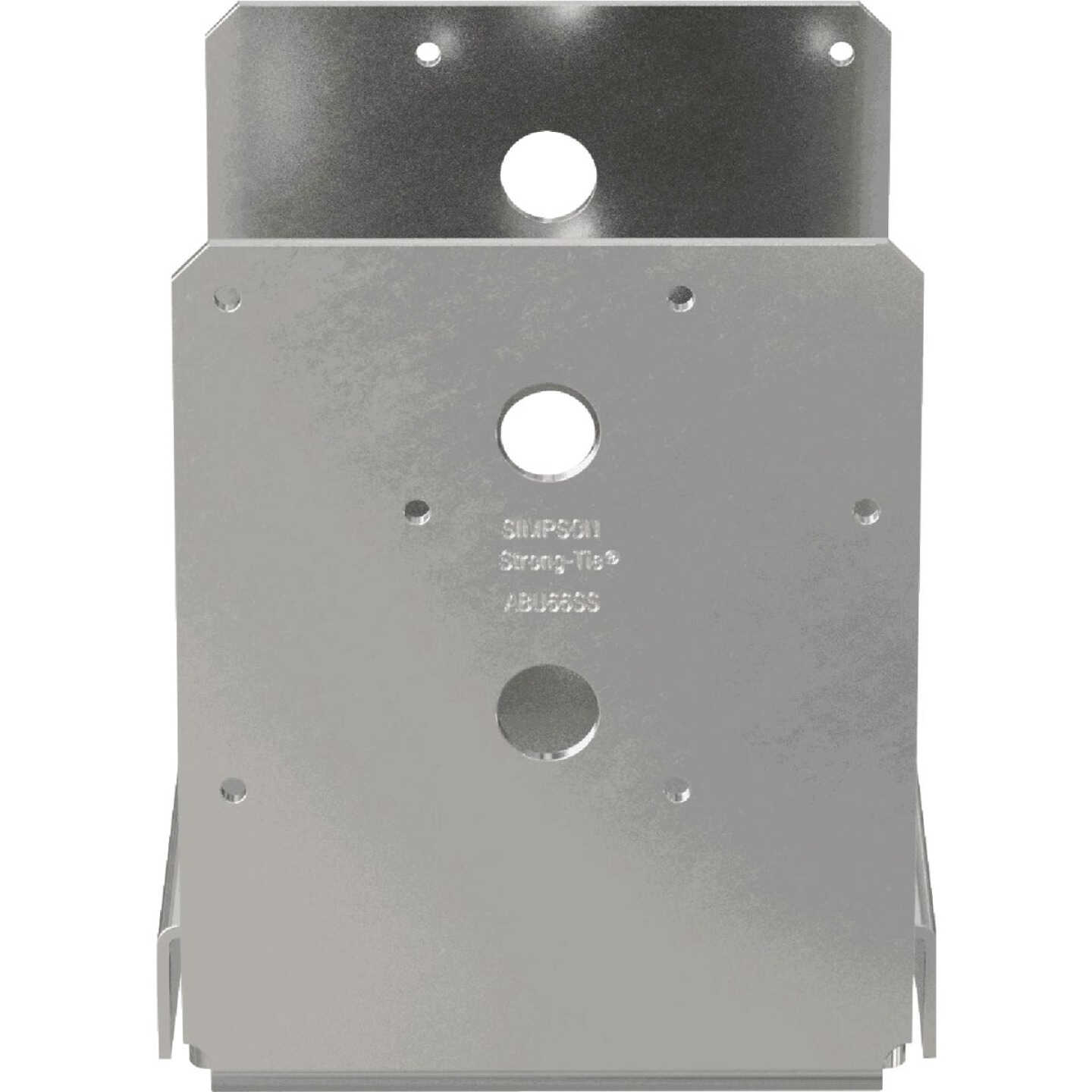

Simpson Strong-Tie ABU Stainless Steel Adjustable Post Base for 6x6 Image 3
$209.99
In-store price may vary from online price. Not all products available at all stores.
Free Ship-to-Store
  • Not available online - check store for availability
Ship to Address
  • Ground Shipping Available
  • Expedited Shipping Available
Product DetailsReviewsQuestions & Answers
Details
  • The Simpson Strong-Tie ABU is designed to attach wooden posts to existing concrete in high capacity applications.
  • The built-in 1-in. standoff of this adjustable post base helps to prevent rot at the end of the post.
  • The ABU has a slotted anchor hole in the base for adjustability and attaches to the post with nails, Strong-Drive SD Connector screws or bolts.
  • This versatile post base makes a cost-effective option for securing a post to the foundation, with a design built for maximum uplift performance.

Additional Details

  • The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
  • 1-in. standoff design meets code requirements for structural posts installed in basements or exposed to weather or water splash
  • Increased uplift loads for earthquake or wind loading
  • Nominal post size: 6x6
  • Steel gauge: Base 12, strap 10
  • Stainless steel for high/severe corrosion resistance
  • Install with stainless-steel 0.162 in. x 3-1/2 in. nails or 1/2 in. diameter stainless-steel machine bolts
Specifications
BrandSimpson Strong-Tie
Size6 In. x 6 In.
GaugeBase 12, strap 10
FinishStainless Steel
MaterialStainless Steel
Dimensions6x6
TypeAdjustable Post Base
Install With3-1/2 In. Nails or 1/2 In. Bolts
UpliftNails: 2,475 Lb., Bolts: 2,190 Lb.
Download18,205 Lb.
UPC00707392440901
Package Quantity1
Unit of MeasurementEach
Country of OriginUnited States of America
